Product details
A220 series 3-way ball valve is suitable for the design and development of pipeline flow direction conversion or cycle work, to achieve rapid opening and closing and switching flow direction. According to different requirements, we can provide L-type and T-type.
Technical parameter
| Type: | T-type,L-type |
| Size: | DN15 ~ DN150 |
| Pressure: | PN16/25/40,150 Lb/300Lb |
| Connection type: | flange type |
| Body material: | WCB,CF8,CF8M |
| Seat material: | PTFE,RPTFE,TFM4215, PEEK, etc |
| Leakage Class: | ASME B16.104 Class VI |
| Temperature: | -196℃~220℃ |

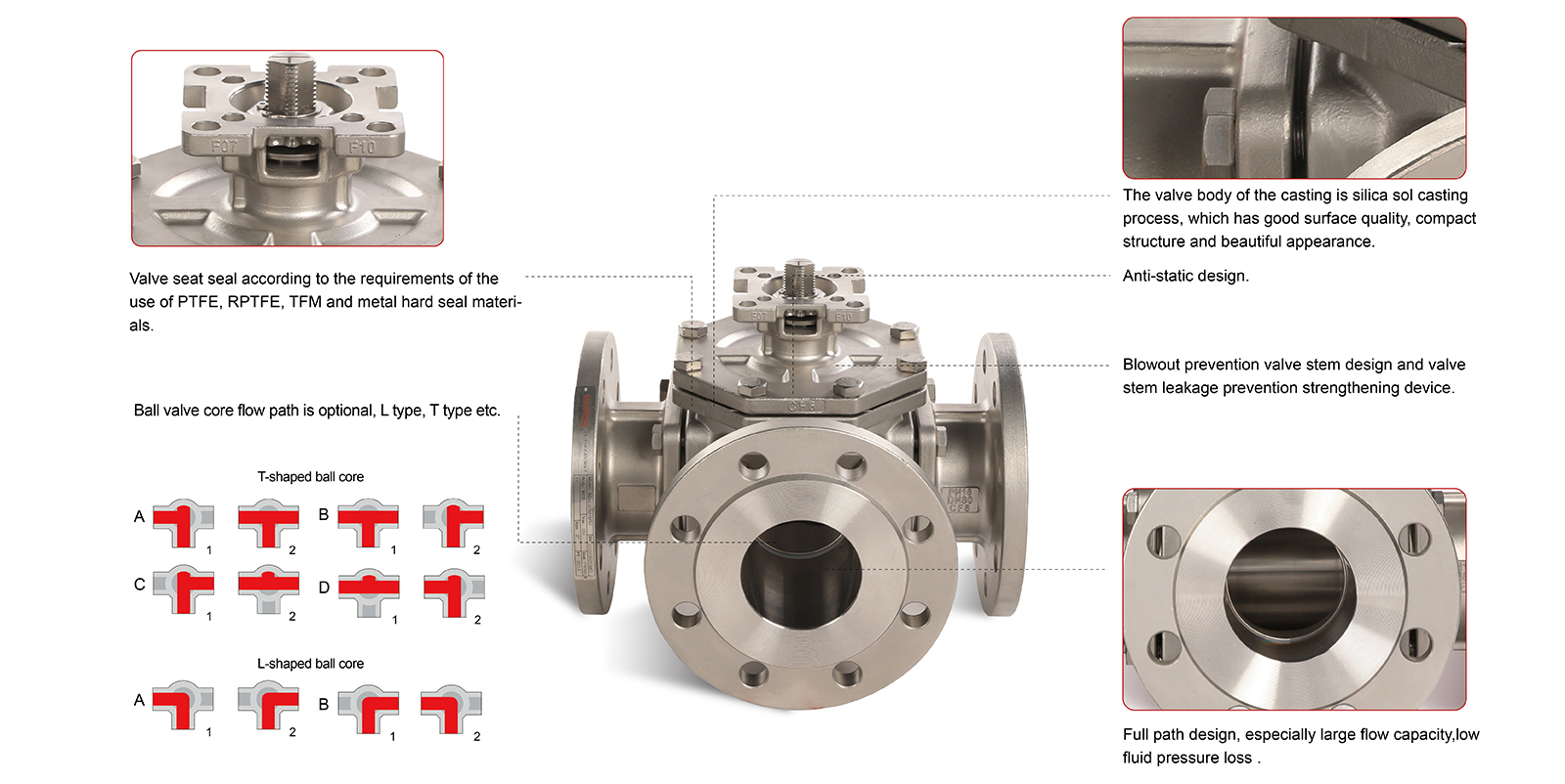

Product structure description
Apply
