Product details

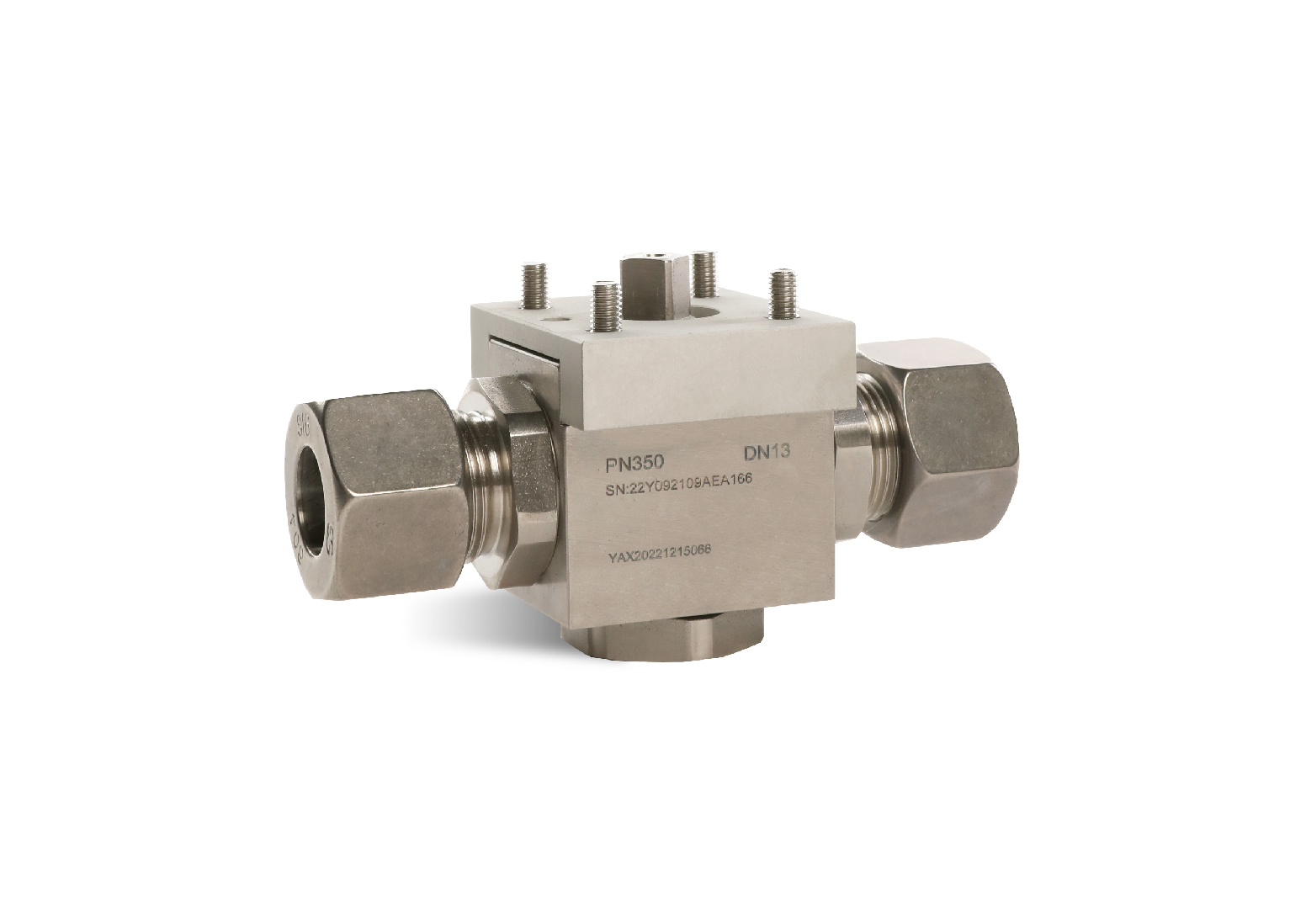

A400 series high pressure ball valve , the valve body is forged by high pressure. The valve seat is made of POM or PEEK material, and the seal is provided by stainless steel metal ring. The sealing performance of the valve seat packing is enhanced with the rise of medium pressure.
Technical parameter
| Type: | Straight through O ball |
| Size: | DN4-DN50 |
| Pressure: | PN350-500 |
| Connection type: | Thread type, Butt welding type, Ferrule type |
| Body material: | A105, F304, F316, etc |

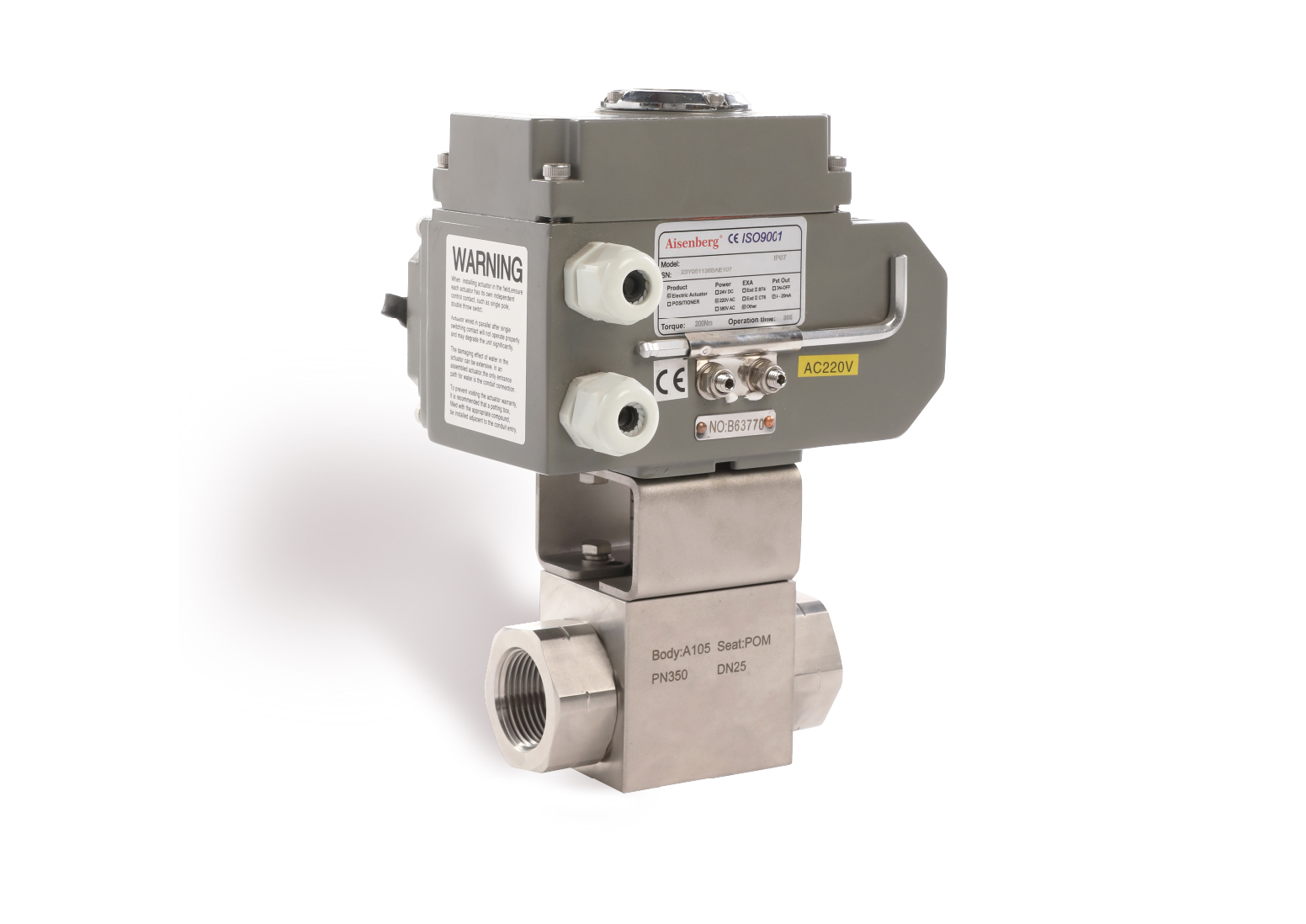

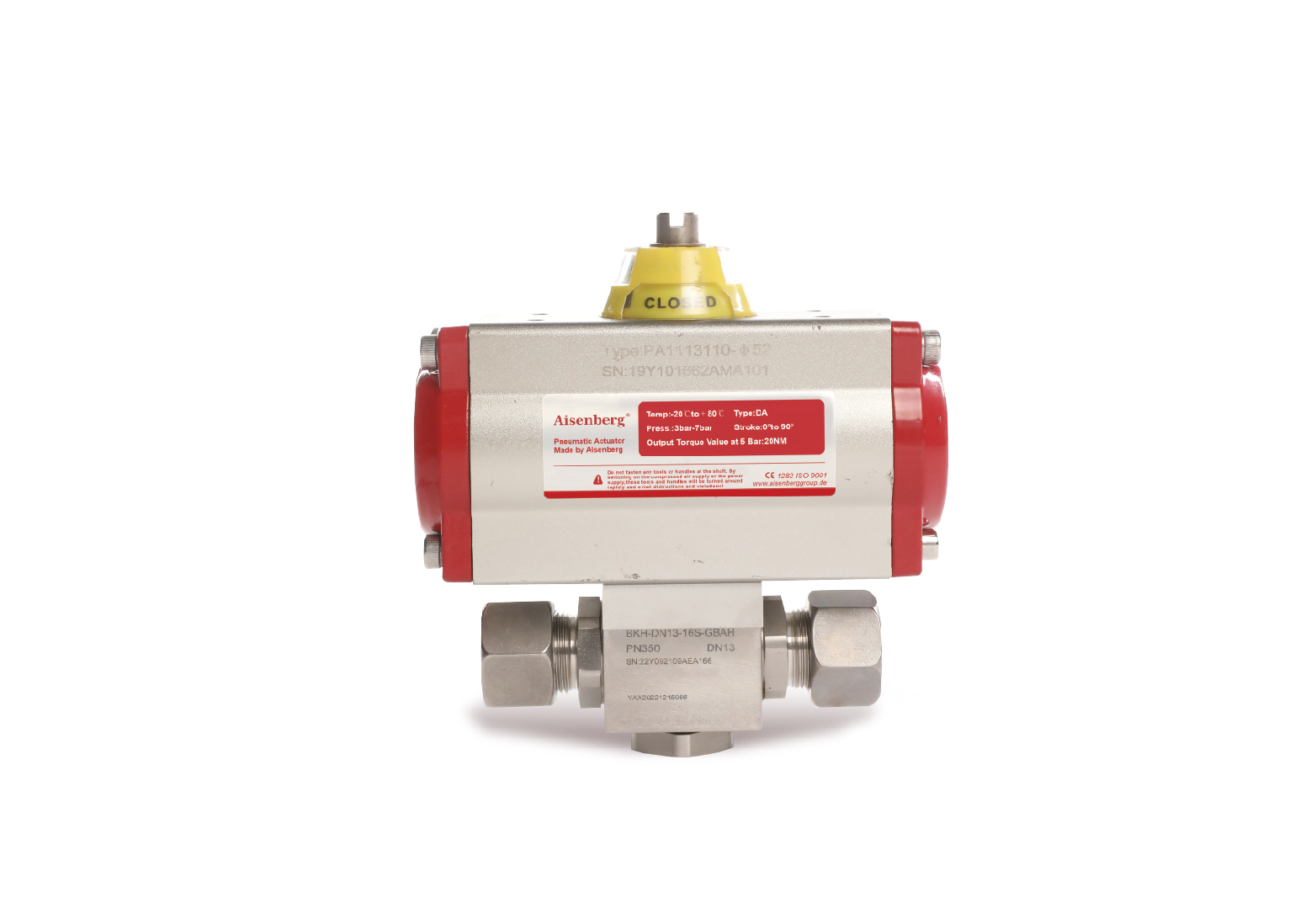

| Actuator: | pneumatic type, electric type |

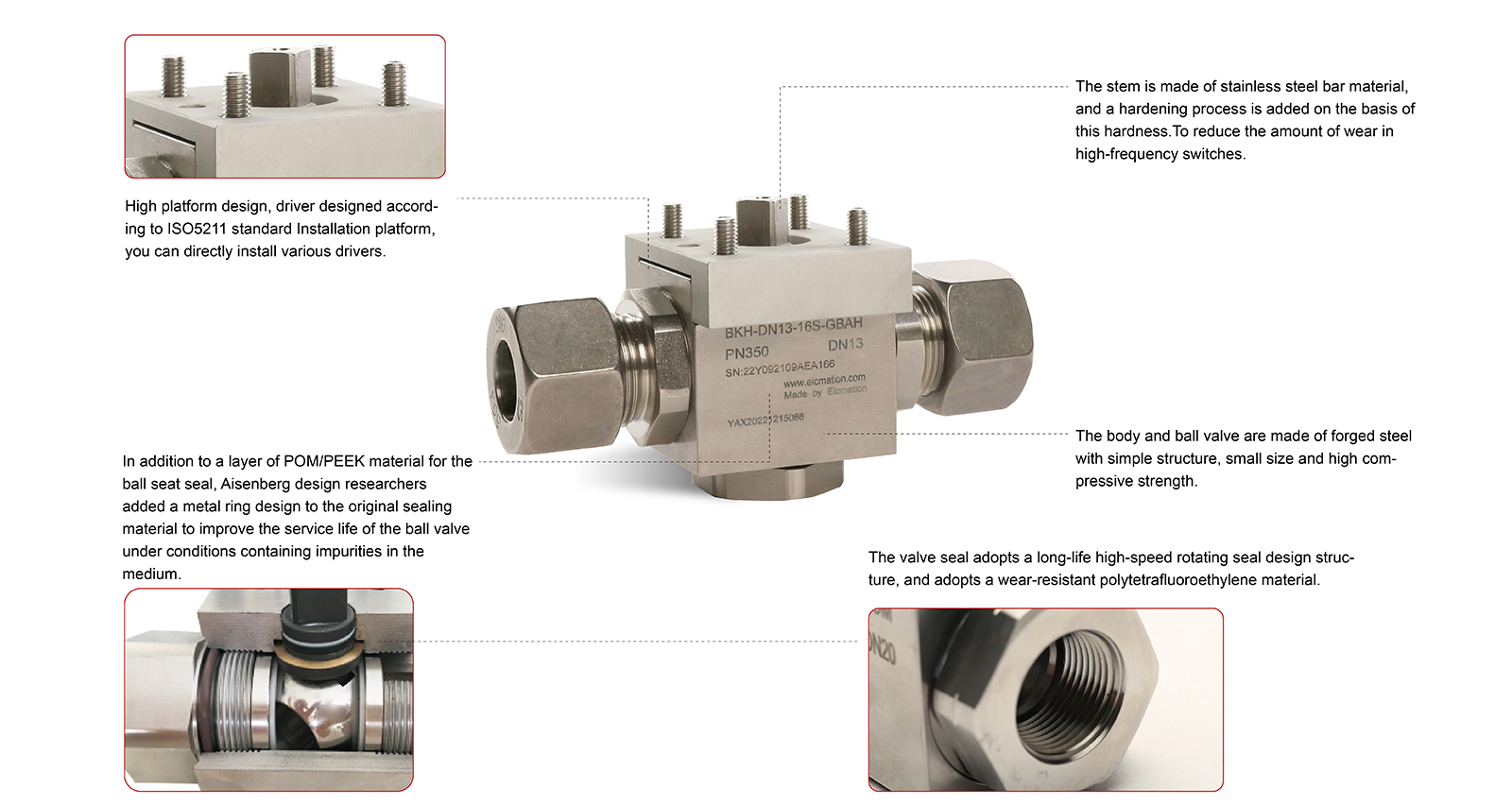

Product structure description
Apply
