Product details

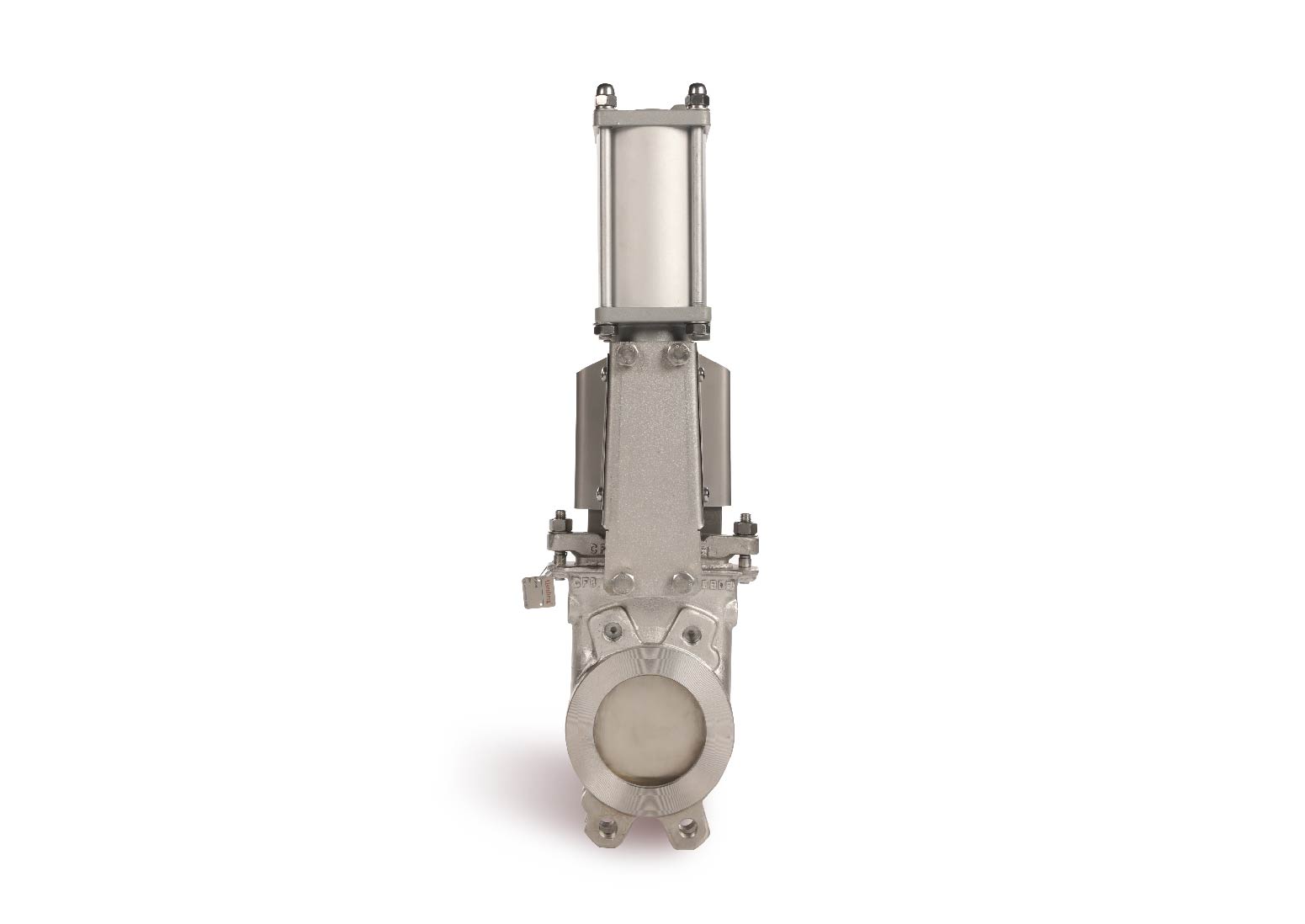

M100 series one-way sealing knife gate valve is the disc part of the gate, the direction of the motion of the gate is perpendicular to the direction of the fluid, by cutting fiber material knife-shaped gate to cut off the medium, knife gate valve has a small installation space, low working pressure, not easy to accumulate debris, low price. When the knife gate valve is closed, the sealing surface is sealed by the medium pressure, that is, the sealing surface of the gate is pressed to the seat on the other side by the medium pressure to ensure the sealing of the sealing surface, and the valve should be installed vertically in the pipeline. The sealing type can be metal seal or soft seal.
Technical parameter
| Size: | DN50 ~ DN1200 |
| Pressure: | PN6-10 |
| Connection type: | Wafer,Lug |
| Body material: | DI, CF8M, etc |
| Seat: | EPDM, metal,etc |
| Actuator: | Manual, pneumatic, electric |

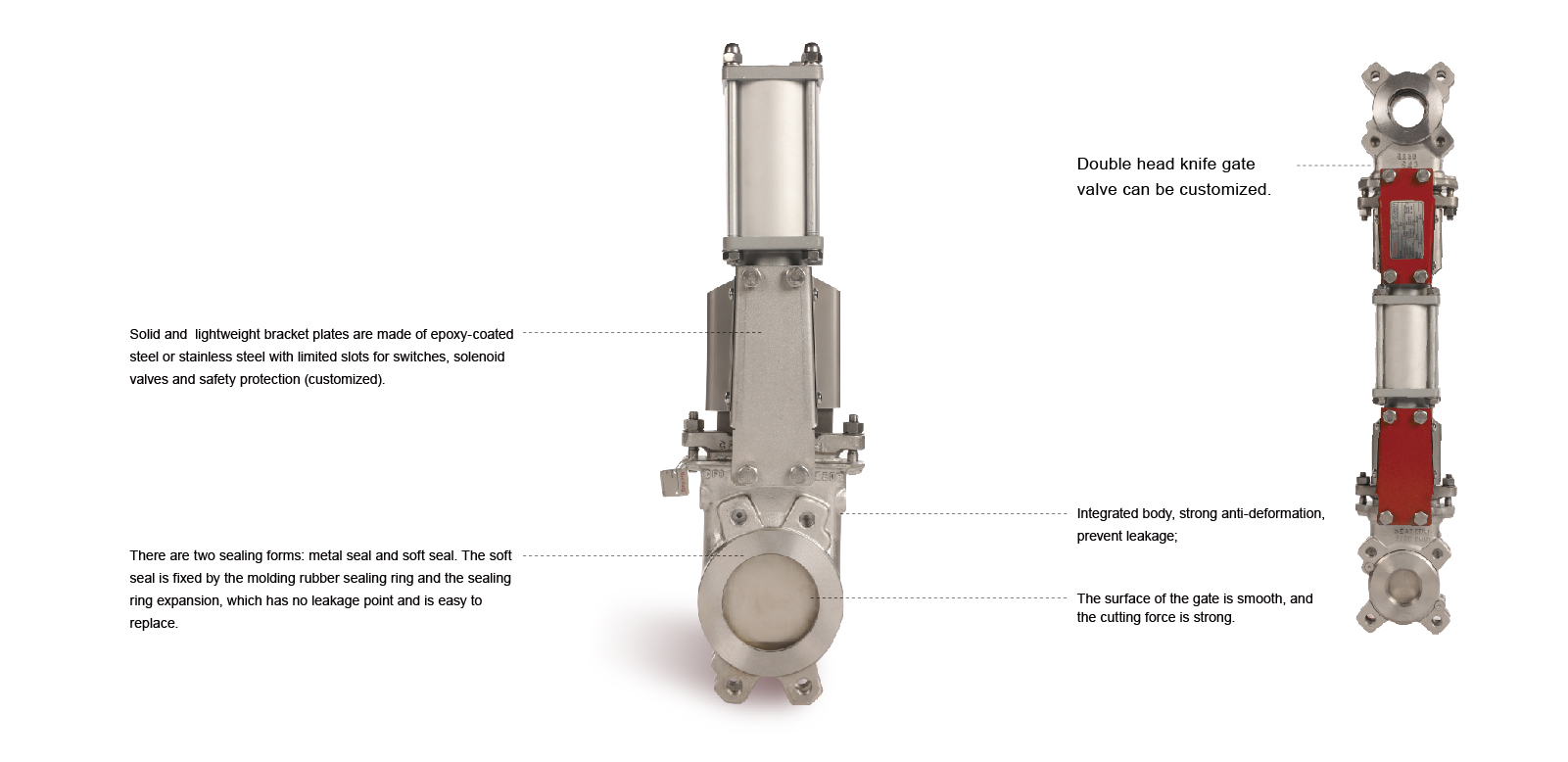

Product structure description
Apply
