Product details

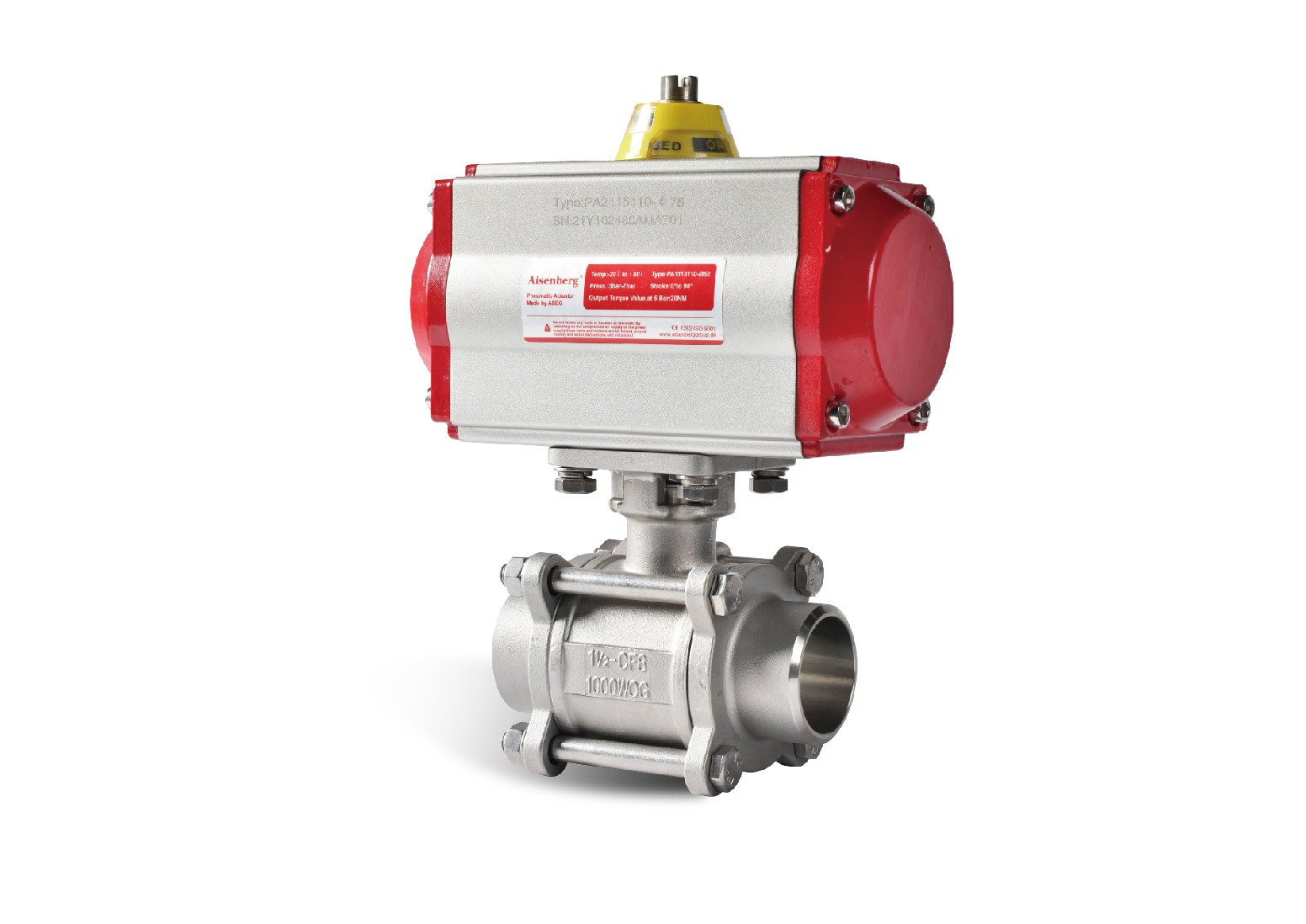

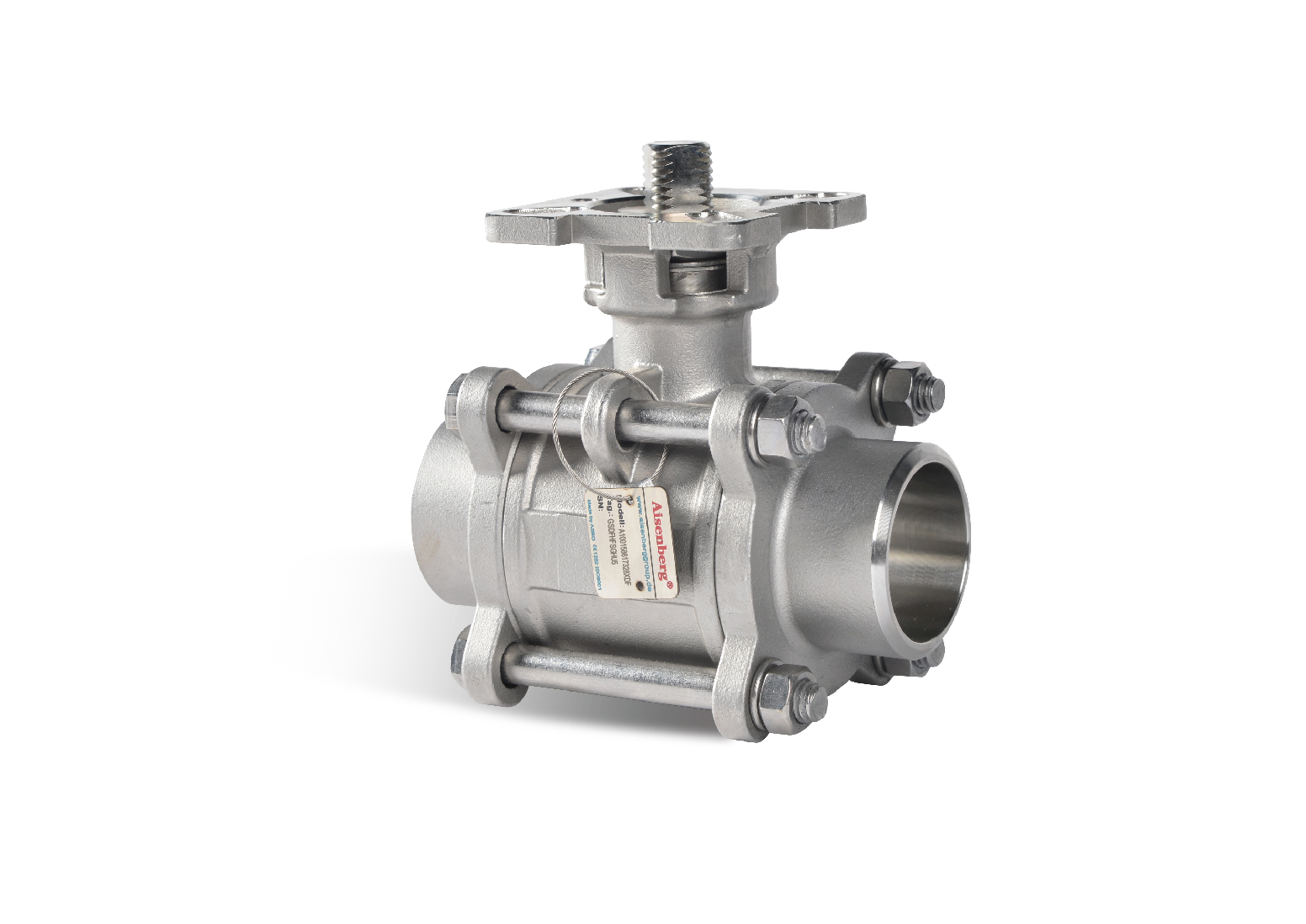

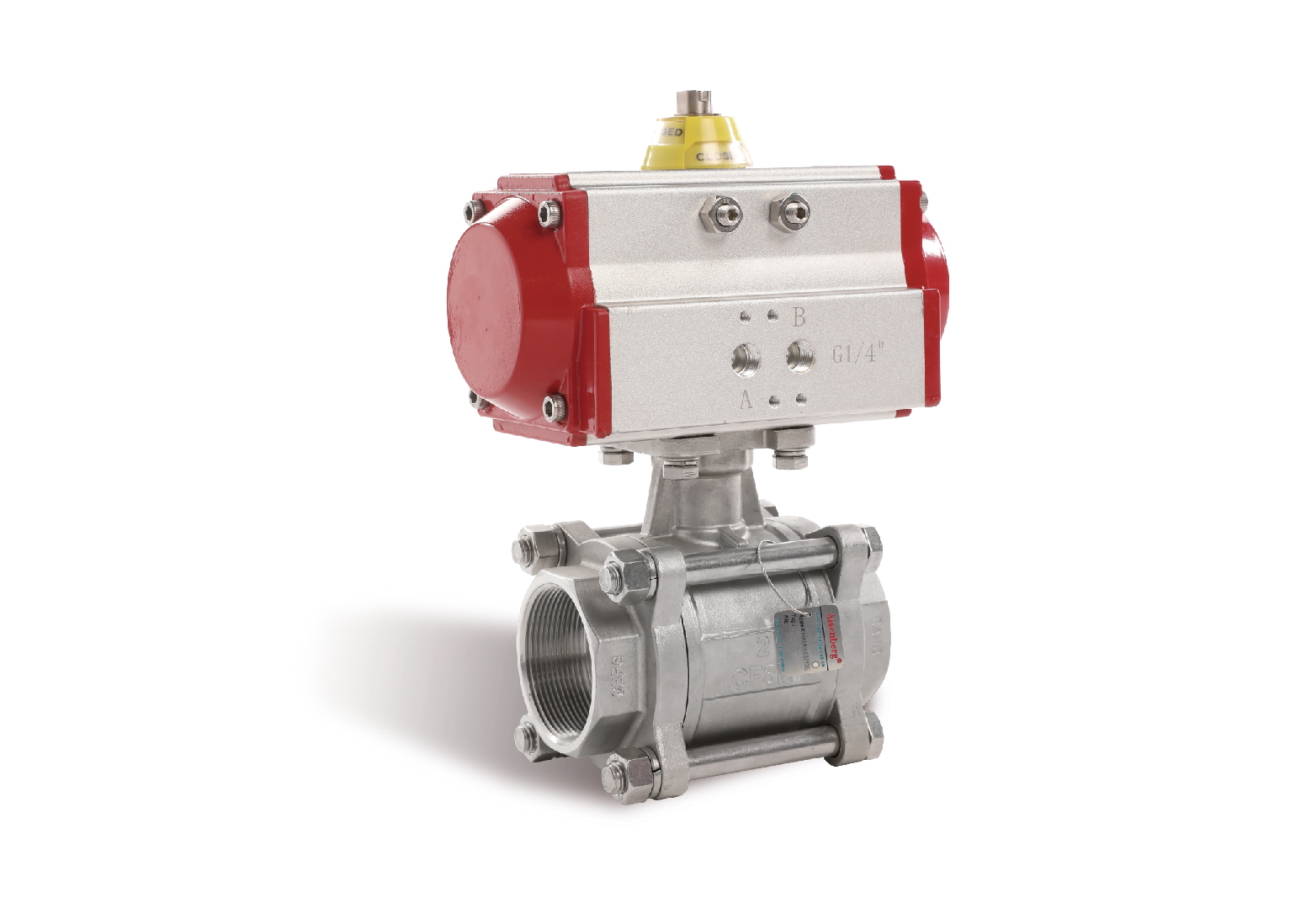

A100 series three-piece ball valve is a three-piece valve body floating ball valve structure, full bore type, with large flow capacity, compact structure, good sealing performance, long life and other characteristics, economic and practical, easy to maintain.The series of ball has "O" type and "V" type , "O" type ball is suitable for on-off type, as cutting off function; The "V" type ball is used for regulating the type, as regulating the flow function. The "V" type ball have sevral angle,such as 30°, 45°, 60°, according to the different notch angle , which can satisfy the regulation requirements of different working conditions.
Technical parameter
| Type: | Straight O ball, V ball |
| Size: | DN8 ~ DN100 |
| Pressure: | 1000WOG, 2000WOG |
| Connection type: | Thread, socket welding, butt welding |
| BODY MATERIAL: | WCB, CF8, CF8M, CF3M, etc |
| Seat material: | PTFE, TFM4215, RPTFE, PEEK, etc |
| Flow characteristics: |
"O" ball core: fast opening characteristics,"V" ball core:approximate equal percentage characteristics |
| Leakage Class: | ASME B16.104 Class VI |
| Packing material: | PTFE , RPTFE,PEEK, Graphite, etc. |

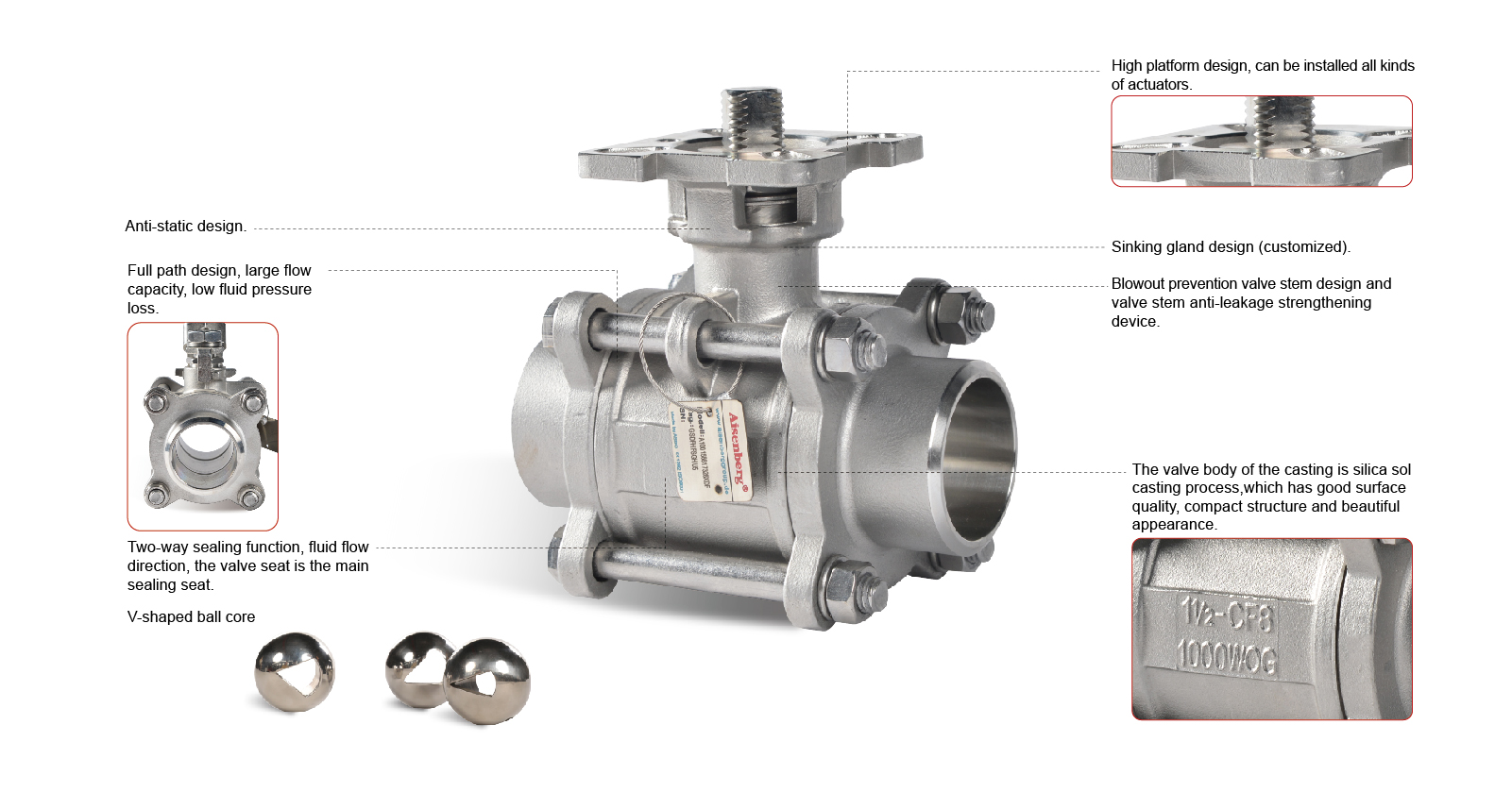

Product structure description
Apply
