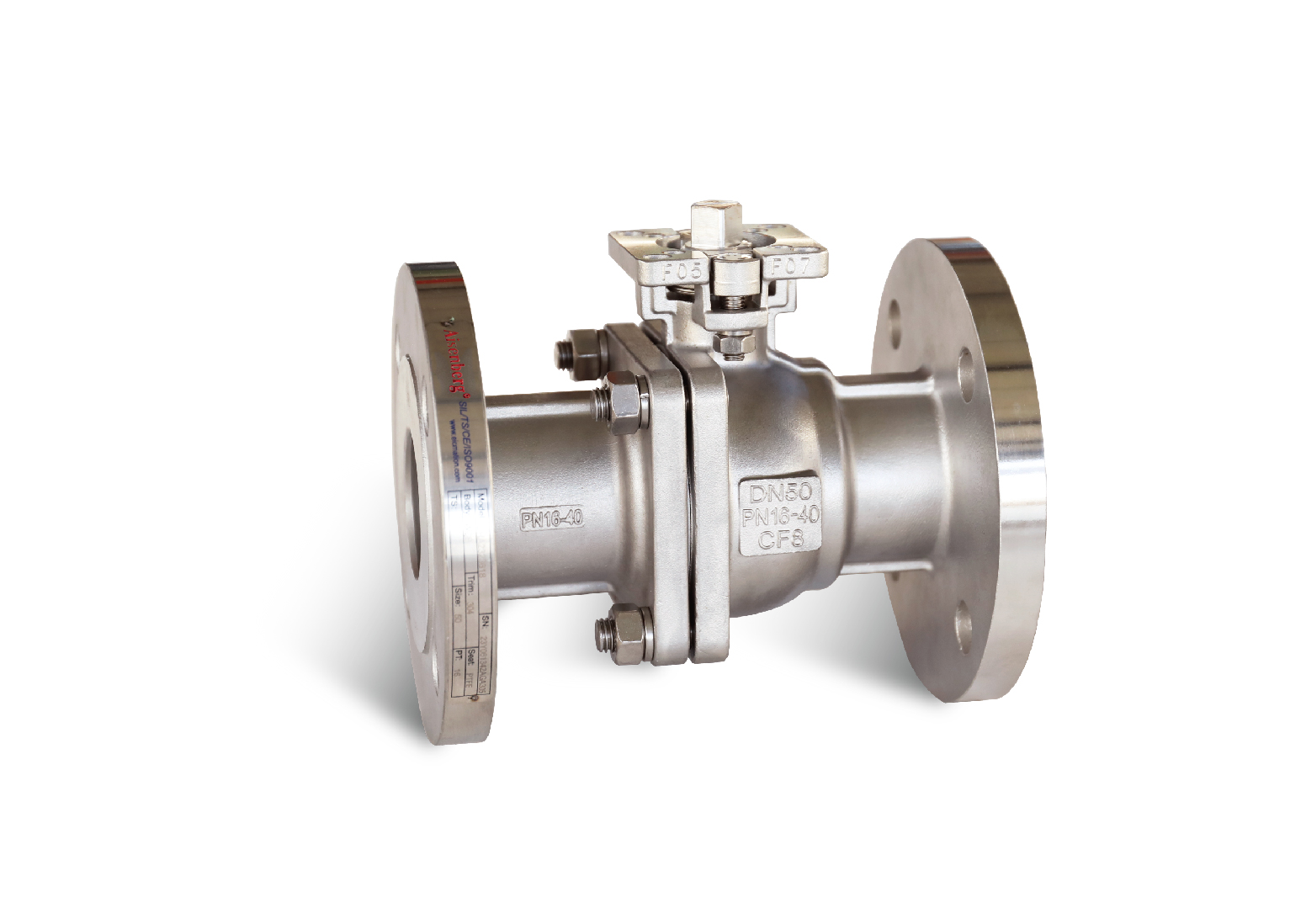

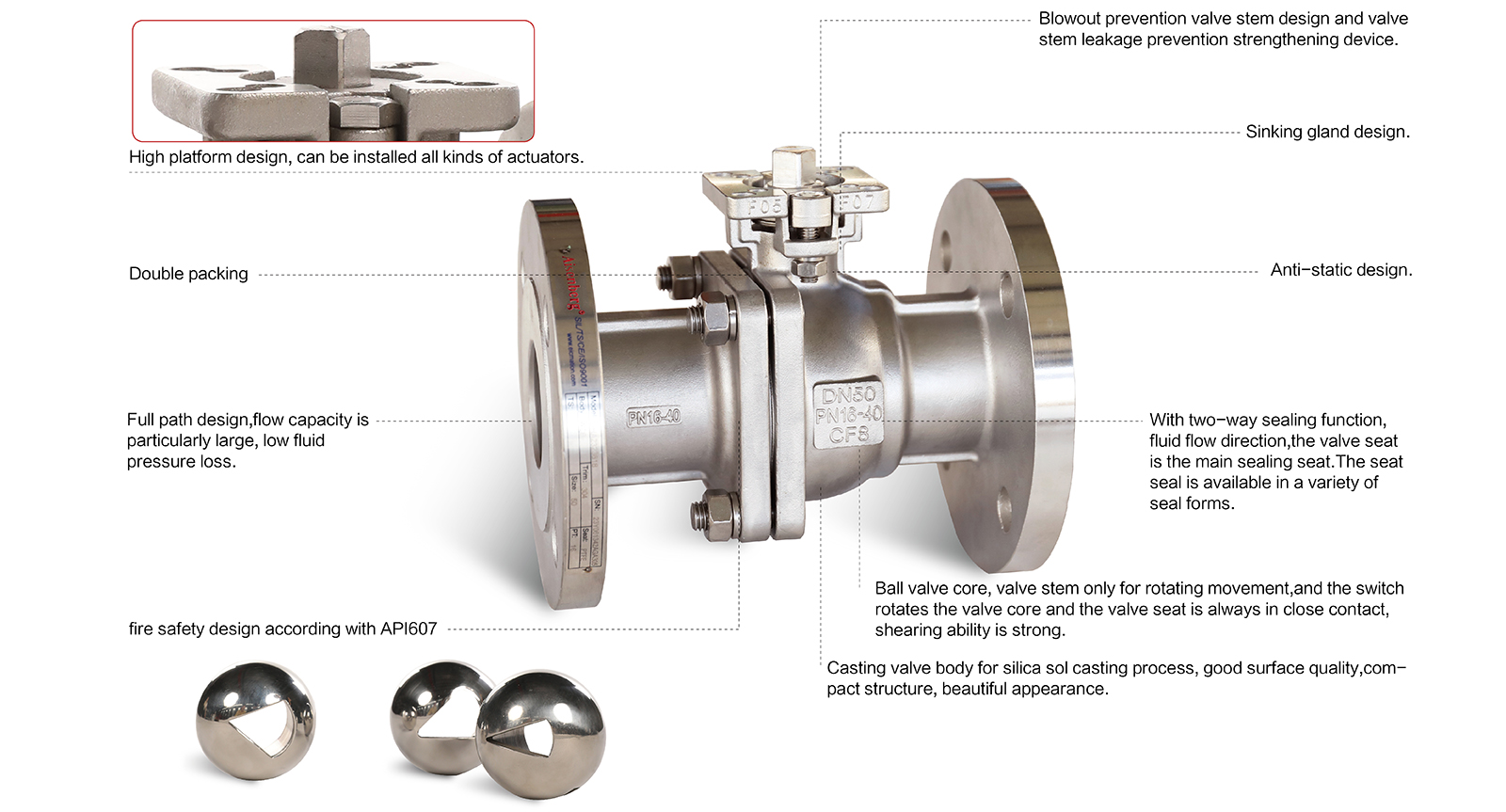

A200 series floating ball valve is a floating ball structure, with large flow capacity, compact structure, good sealing performance, long life and other characteristics, economic, practical, easy to maintain. In addition to controlling gas, liquid and steam media, it is also suitable for controlling sewage and media containing fiber. According to customer needs to choose fire protection type, special hardening treatment type, ultra-low temperature type.
The series of ball has "O" type and "V" type , "O" type ball is suitable for on-off type, as cutting off function; The "V" type ball is used for regulating the type, as regulating the flow function. The "V" type ball have sevral angle,such as 15°, 30°, 45°, 60°, 90°etc, according to the different notch angle , which can satisfy the regulation requirements of different working conditions.
| Type: | Straight O ball, straight V ball |
| Size: | DN15～DN200 |
| Pressure: | PN16/25/40，150Lb/300Lb |
| Connection type: | flange type |
| Body material: | WCB,CF8,CF8M |
| Seat material: | PTFE, TFM4215, RPTFE, PEEK, etc |
| Flow characteristics: | "O" ball core: quick opening flow characteristics, "V" ball core: approximate equal percentage characteristics |
| Leakage Class: | ASME B16.104 Class IV (Metal seat)ASME B16.104 Class VI (Soft Seat) |
| Operating temperature: | -196℃~220℃（Soft seal）-196℃~600℃(Metal seat) |
