01 Application
Air separation refrigeration industry
02 Project Name
Aisenberg user project - Replacement of field double eccentric butterfly valve project
03 Challenges
● The adjustment pressure difference is large, 3MPa before the valve, 0.01MPa after the valve
● Sealing grade requirements V
● The medium is high-speed gas, and the sealing erosion is serious
● Limited installation space on site
04 ASBG solutions
Working condition: Medium: nitrogen, flow rate: 10000~12000Nm3/h, pressure: 3MPa before the valve, 0.01MPa after the valve, temperature: 20℃ According to the field conditions, the product independently developed by Aisenberg - all-metal seal butterfly valve is adopted, which can be flexibly customized on the basis of this product, and can completely solve the field pain point problem:
√ Increase the throttle orifice plate: the field adjustment pressure difference is large, relying on the triple offset butterfly valve to achieve a single buck, increase the throttle orifice plate for secondary buck, to meet the valve in front of 3MPa, 0.01MPa behind the valve working condition requirements;
√ The sealing surface is made of metal material to achieve bi-directional full pressure difference and zero leakage, which can meet the requirements of on-site sealing grade V and solve the serious problem of sealing erosion;
√ customized on-site matching accessories; Aisenberg flexibly customizes matching concentric reducing tubes and matching flanges according to the site for on-site installation.

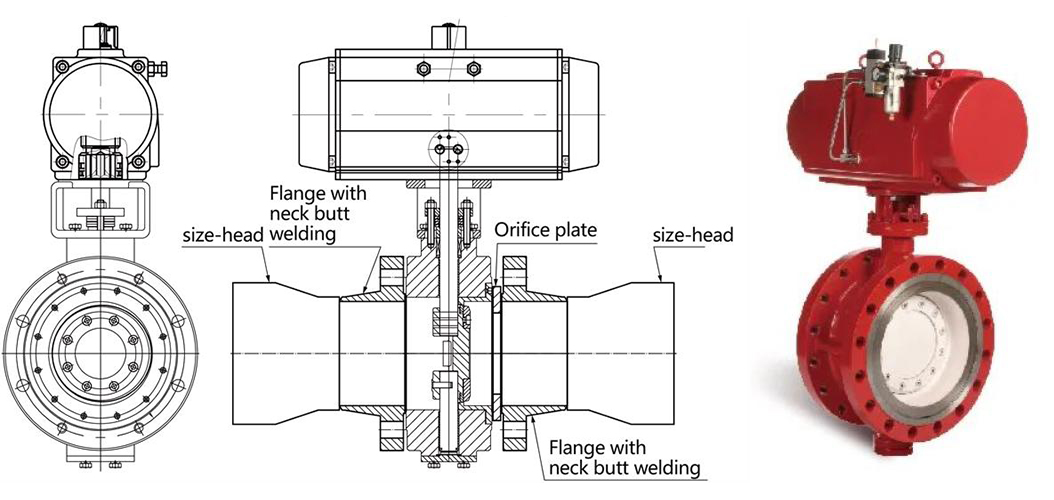

Aisenberg triple offset Butterfly Valve - All-metal seat triple offset butterfly valve
It has the characteristics of reliable adjustment performance, small closing torque, good cutting performance, zero leakage, wide application range and long service life
Aisenberg all-metal sealed triple butterfly valve Features:
(1) Unique structure, small and light, flexible operation, labor-saving and convenient;
(2) Reliable sealing, the use of all-metal materials, surface nitriding treatment or surfacing welding STL alloy, can achieve gas VI seal, sealing surface erosion resistance, effectively extend the service life of the valve;
(3) The seat and the disc seal ring are split design, replaceable, easy to maintain;
(4) The valve can be applied to bidirectional sealing conditions;
(5) The valve stem is splined connection, the force is uniform, and there is no risk of cutting the pin key.
(6) The packing structure adopts the design structure with butterfly spring, which can automatically compensate the packing loss.
(7) It can be used as a switch or as an adjustment, the adjustment performance is reliable, the flow characteristics tend to be equal percentage, and the adjustment ratio is 100:1;
(8) Wide range of applications, can be applied to high temperature media, but also suitable for low temperature media;
(9) High platform design: The driver installation platform designed according to ISO5211 standard can be directly installed with all kinds of drivers.
05 User Feedback
Aisenberg all-metal triple offset butterfly valve has been running in the user site for more than one year, the control accuracy and stability of the system have been verified, the field use effect is good, without any abnormality, the production efficiency has been significantly improved, and has been unanimously recognized by the user.
 |
 |
| Before | after renovation |

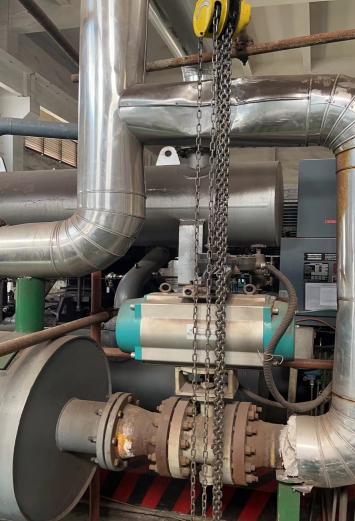

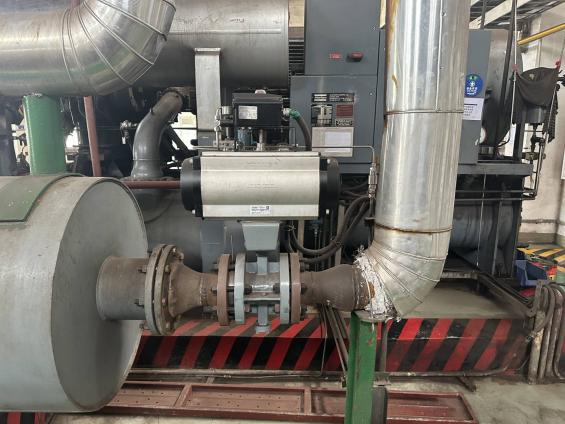

Photo source: Aisenberg a user before and after the site transformation
06 Solution value
Aisenberg all-metal seat triple offset butterfly valve is suitable for high temperature, high pressure or special working conditions, as a component used to achieve pipeline system on and off and flow control has been widely used in petroleum, chemical, metallurgy, hydropower, air separation equipment and many other fields. It can be used to control the flow of various types of fluids such as gas, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.
Aisenberg all-metal seat triple offset butterfly valve as a technologically advanced butterfly valve, when used as a on-off valve, can replace gate valve and ball valve; In the use of regulating the flow rate, can replace the globe control valve, thereby improving the efficiency and safety of industrial production. Through its wide application fields and high performance characteristics, is of great value and significance to industrial production. plays an indispensable role in improving production efficiency, ensuring product quality, or maintaining work safety and environmental friendliness.
