Media containing acid and solid particles are common materials in chemical production, these media will cause some corrosion and wear on valves and pipelines. Diaphragm valves and fluorine lined valves are common choices for these conditions, but the use of most of the effect is not ideal, diaphragm and fluorine lining can be effective corrosion resistance, wear resistance is general. If the valve body using special materials, the purchase cost will increase significantly, while maintenance and spare parts costs will also increase accordingly, not in line with the principle of cost reduction and efficiency.

In response to this challenge, Eicmation independently developed and produced pipe pinch valve , and obtained good results in practical applications. As the main parts of the pipe pinch valve, Aisenberg uses foreign natural rubber + high-quality synthetic rubber as the main raw materials, processing and production of modern technology. In the process of use, it can withstand the challenges of complex working conditions for a long time and reduce the intensity of on-site maintenance.

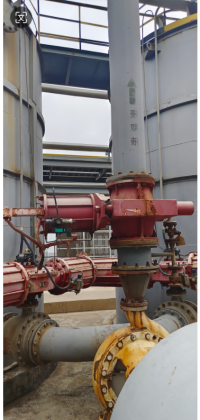

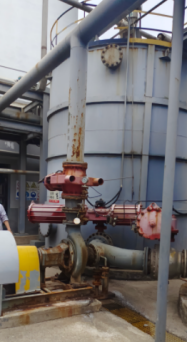

The above picture shows the field application of Aisenberg pneumatic pipe pinch valve in an Aisenberg user. Before the technical improvement, there was a problem: the field ball valve life was 7-8 months. Aisenberg technical team combined with the field conditions, using Aisenberg pneumatic pipe pinch valve to solve this pain point problem. Since it was put into operation for three years, it has been running smoothly and its life has been increased by 100%, which has won wide praise from customers.

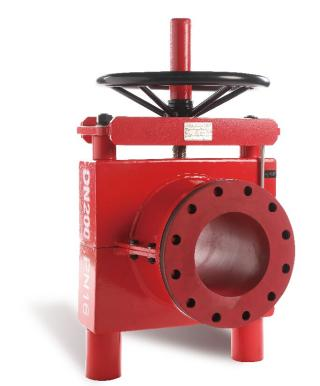

Aisenberg Pipe Pinch Valve DN20-DN1500

It has the characteristics of bidirectional 0 leakage, strong corrosion resistance, high wear resistance, high temperature resistance, flow adjustment, cost-effective, and extended life

The heart of the Aisenberg clamp valve is located in the "rubber valve sleeve" ™

Aisenberg Rubber Valve sleeve ™

The rubber valve sleeve is the most important part of the pipe pinch valve, and it is the "core" of the pipe pinch valve. Provides resistance to corrosion, wear and pressure. The quality of the pipe pinch valve depends on the quality of the casing. The Aisenberg research team independently designed an advanced Aisenberg Rubber Valve sleeve ™, which has been successfully applied in several projects with good application feedback. At present, Aisenberg has applied for the product national invention patent.

Inner layer:

Aisenberg uses imported rubber raw materials and special formula to meet the application of wear, corrosion, high temperature and other conditions.

Reinforced layer:

Aisenberg synthetic rubber and synthetic fiber technology combine perfectly to form a unique reinforced skeleton for bearing and fatigue resistance of the valve sleeve.

Outer layer:

Aisenberg selected imported natural rubber for protection and increased flexural resistance of the valve sleeve.

Opening tape:

The middle part of the outer wall is equipped with a manual cable tie, which solves the problem of fixing the inner liner and the drive mechanism, and the tension problem, and ensures that the valve can be fully opened under any circumstances.
