Double eccentric butterfly valve
Product details
B200/B210/B220 series high performance double eccentric butterfly valve disc and seal ring with a unique eccentric structure, offset stem,eccentric butterfly disc, valve seat using lip seal to compensate for temperature changes and pressure changes, with compact structure, high flow capacity, reliable and durable sealing, good cutting performance and other characteristics, combining regulating with cutting off two functions.
Technical parameter
| Size: | DN50~DN600 |
| Pressure: | PN10~40，150Lb~300Lb |
| Connection type: | Wafer type, lug type,flange |
| Body material: | WCB,CF8,CF8M,etc. |
| Seat material : | PTFE,RPTFE,PPL |
| Working temperature: | -29~250℃ |

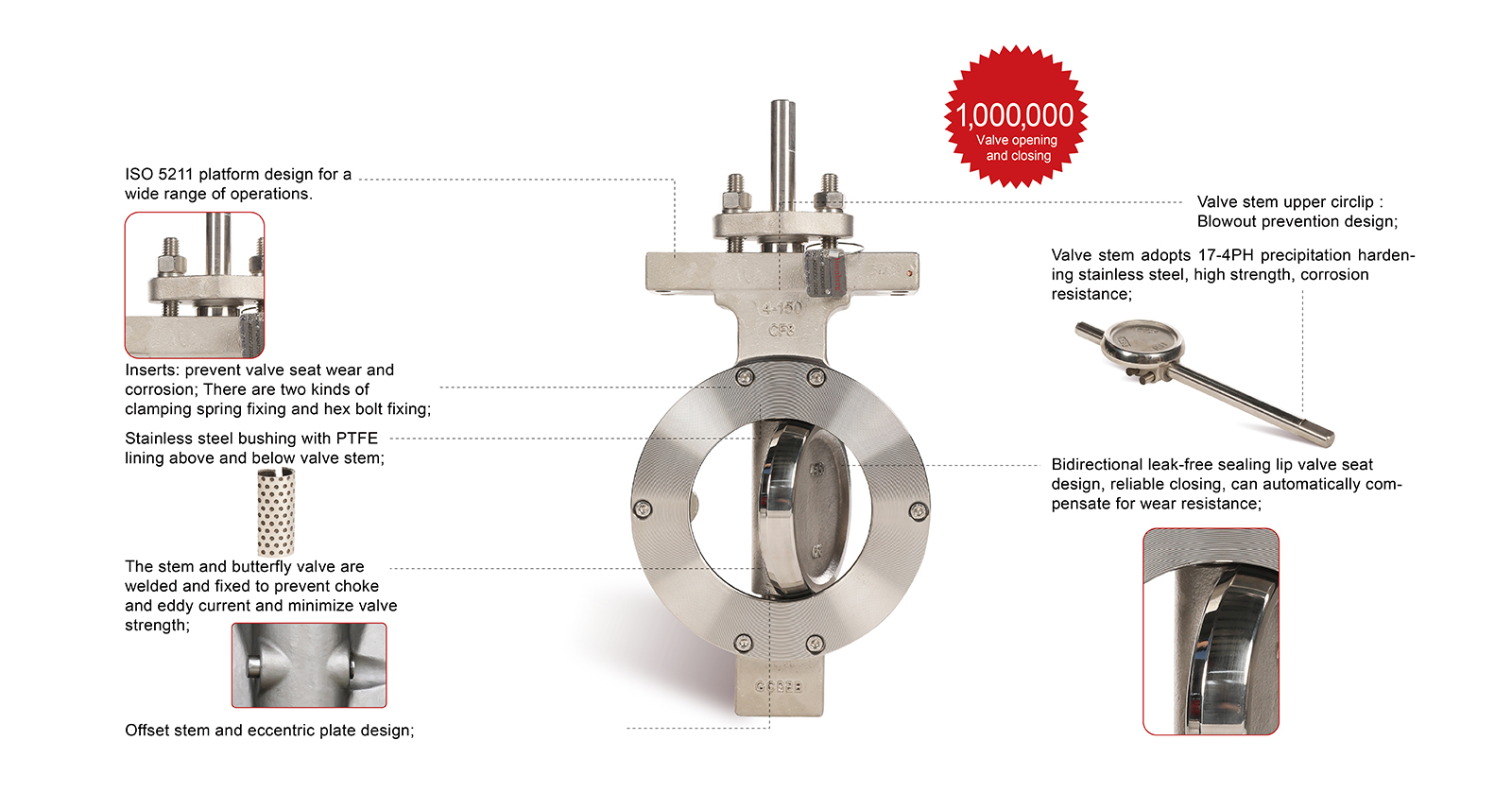

Product structure description
Apply
